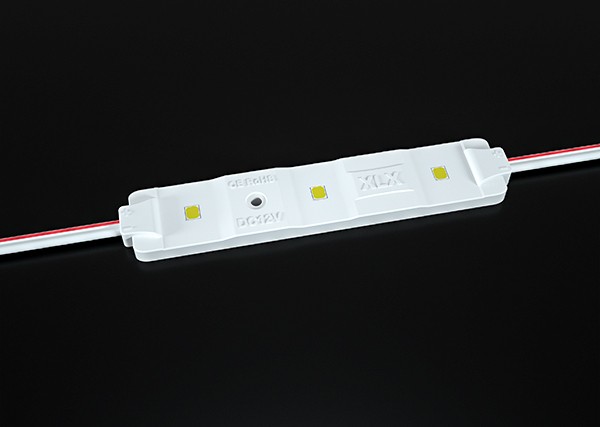

· Input voltage 12VDC, power 1.0W
· SMD 2835 high brightness light source, a set of 3 lights

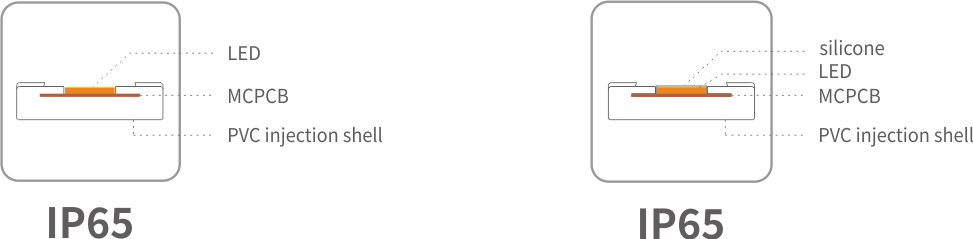

· PVC shell injection molding and spraying process, double protection function
· MCPCB adopts thickened high conductive aluminum substrate, good heat dissipation effect
· Uniform light, no light spot, single module can be cut and customized
Specification
|
Model |
XM-100-2835-12V |
| Working Voltage（V DC) |
12V DC |
|
Norma Power（W/set） |
1.0W |
|
LED Type |
SMD 2835 |
|
CCT（K） |
2200K-10000K |
|
Luminous Flux（lm/set） |
88 |
|
CRI（Ra） |
>90 |
|
Light Angle（°） |
120° |
|
LED Qty |
3LEDs /piece |
|
Product size |
78.4*15.2*5.2mm |
|
Single end current length |
20/string |
|
Double end current length |
40/string |
Product size chart
Exploded view
Mounting accessories

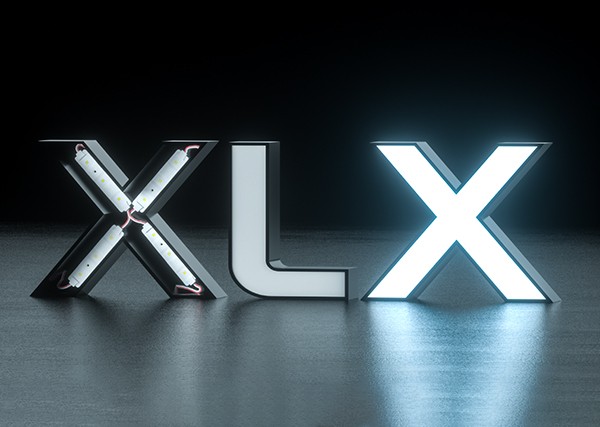

Scope of application
Widely used in signs, advertising signs, ultra-thin light boxes, crystal light boxes, jewelry counters and expensive watches counters counters mall counters, cosmetics counters, medicine counters, display counters and other lighting scenes.
Specifications
