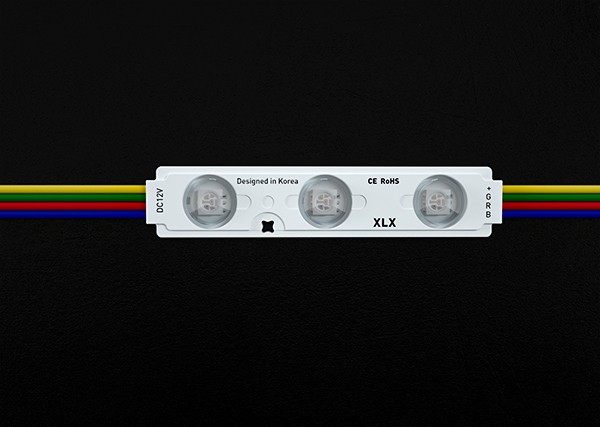

· Input voltage 12VDC, power 1.0W
· SMD 5050 high brightness light source, color adjustable, a group of 3 lights
· The module adopts PVC all-package injection molding process, IP rating 65
· MCPCB adopts thickened high conductive aluminum substrate, good heat dissipation effect
· Improved optics, no light spots, single module can be cut and customized
Specification
|
Model |
XM-100-5050-RGB-12V |
|
Working Voltage（V DC) |
12V DC |
|
Norma Power（W/set） |
1.0W |
|
LED Type |
SMD 5050 |
| Color | R G B |
|
Light Angle（°） |
160° |
|
LED Qty |
3LEDs /piece |
|
Product size |
75*15*5.5mm |
|
Single end current length |
20/string |
Product size chart
Exploded view
Mounting accessories
Scope of application
Widely used in advertising light box, advertising signs, crystal light box, jewelry, jewelry counters and expensive watches mall counters, cosmetics counters, medicine counters, display counters, etc.
Specifications
