It can be applied to outdoor, building outline, etc. any different shapes can be outlined according to the flexible characteristics of the product. Excellent weather resistance makes it in a normal soft state at -20~+45℃, without embrittlement, deformation, softening and aging.
Specification
|
Model |
XN-KP-1616V |
|
Working voltage（V DC） |
12 / 24V DC |
|
Power（W/m） |
11W / 14.4W |
|
Luminous flux（lm/m） |
850-900 |
|
CCT（K） |
2200K-6000K R G B Y Pixel |
|
CRI（Ra） |
>90 |
|
LED Type |
SMD 2835 / SMD 3838 |
|
LED Qty（LEDs/m） |
126(Single Color) / 240(Adjustable CCT) / 84(RGB) / 84(SPI) |
|
Cutting length（mm） |
23.8/55.5(Single Color) 25/50(Adjustable CCT) 35.7/71.4(RGB) 35.7/71.4(SPI) |
|
Minimum bending（mm） |
100 |
|
Control mode |
Single Color/Adjustable CCT/RGB/SPI |
|
Light Angle（°） |
120° |
|
IP Rating（IP） |
IP67 |

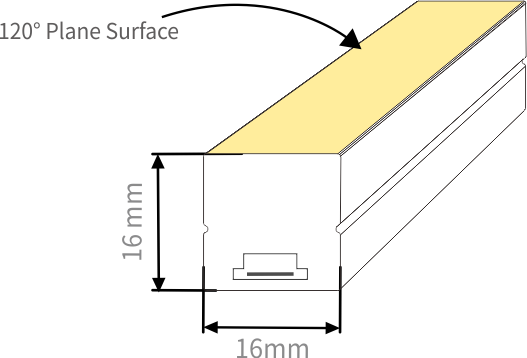

Product size chart
Exploded view

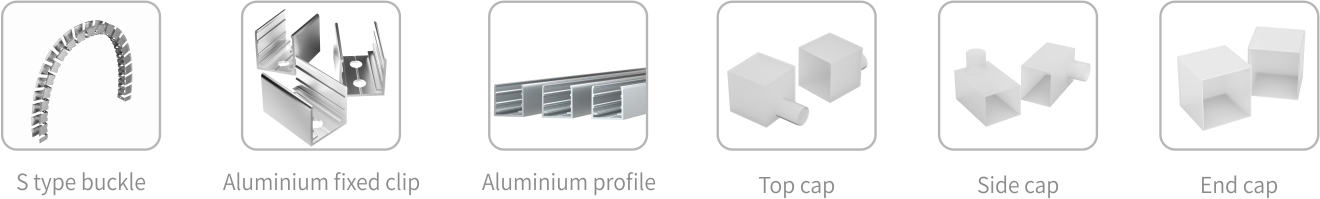

Mounting accessories
Scope of application
Widely used in: brand stores, characteristic hotels, museums, art galleries, hotels, bars, parties, building lighting, clubs, karaoke bars, stage, outdoor decoration, advertising modeling word decoration, lighting and so on.
